Model NO.
HT-CX320-10W-24V-8F8
CRI: >90
Lumen: 940lm/M
Power: 10W/M
Input Voltage: 12V/24V DC
PCB width: 10mm
IP rate: IP68
Quantity:
Product Features:

  • High density COB LEDs
  • Linear lighting, without light spot, soft and uniform luminance
  • High CRI, high brightness and high efficiency
  • Long lifespan
  • Transparent silicone extrusion with IP68 provides the best waterproof performance and lowest lumen loss.
  • Widely used for outdoor commercial building, swimming pool, hotel, office building and other business places to outline building contour.

Parameters:

CCT

CRILuminous Flux(lm/m)Luminous Efficacy(lm/w)PowerWidthVoltageMini cut
2700K>90750lm/m75lm/w10W/M10mm12V/24V DC

25mm/50

mm

3000K830lm/m83lm/w
4000K880lm/m88lm/w
6500K940lm/m94lm/w

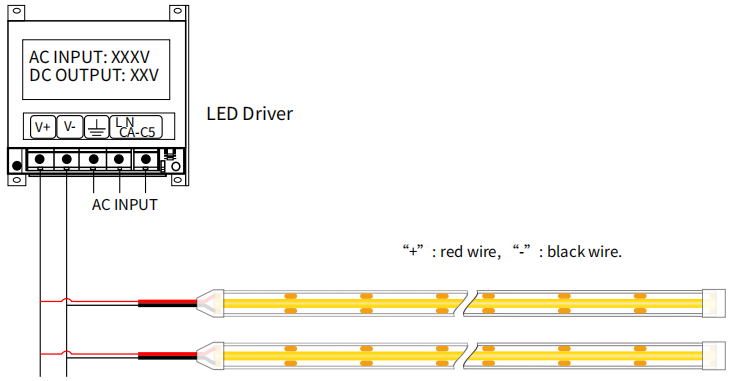

Connections:

Product information:
