SMD 2835 LED strip 20 Meter Working No Voltage Drop

SMD 2835 LED strip 20 Meter Working No Voltage Drop

Model NO.: HT-L2835X120ND-8W-24V-10F0-20M

CRI: >80
Lumen: 820lm/M
Power: 8W/M
Input Voltage: 24V DC
PCB width: 10mm
IP rate: IP20/IP64/IP65/IP68

Quantity:

Product Description

Product Features：

Low heat and low energy loss
No IC adopted and working stably
3000k, 4000k, 6000K are available
Voltage drop at the end is just 4.1V for 20 meters LED strip, The Lumens at the ends are almost the same
Can be cut into several parts according to the units of the strips and easy to bend
Widely used for architecture, commercial, residential decoration and lighting

Parameters:

CCT	CRI	Luminous Flux(lm/m)	Luminous Efficacy(lm/w)	Power	Width	Voltage	Mini cut
3000K	>80	780lm/m	97lm/w	8W/M	10mm	24V DC	41.7mm
4000K		800lm/m	100lm/w
6500K		820lm/m	102lm/w

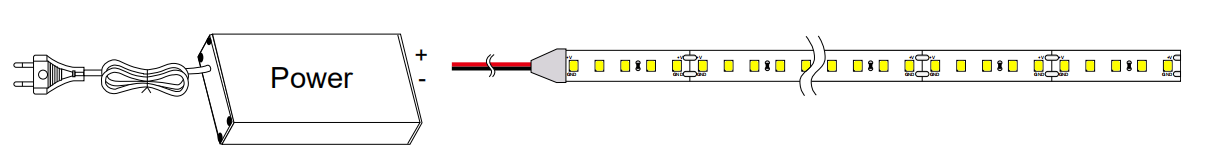

Connections:

Product information:
