Model NO.
HT-CX512-12W-24V-8F7B
CRI: >90
Lumen: 396lm/M
Power: 12W/M
Input Voltage: 12V/24V DC
PCB width: 10mm
IP rate: IP65
Quantity:
Product Features:

  • High density COB LEDs.
  • Linear lighting, without light spot, soft and uniform luminance.
  • High CRI, high brightness and high efficiency.
  • Long lifespan.
  • Black silicone with narrow transparent silicone extrusion provides excellent condensation effect.
  • Widely used for outdoor commercial building, swimming pool, hotel, office building and other business places to outline building contour.

Parameters:

CCT

CRILuminous Flux(lm/m)Luminous Efficacy(lm/w)PowerWidthVoltageMini cut
2700K>90348lm/m29lm/w12W/M10mm12V/24V DC

31.5mm

3000K348lm/m29lm/w
4000K396lm/m33lm/w
6500K384lm/m32lm/w

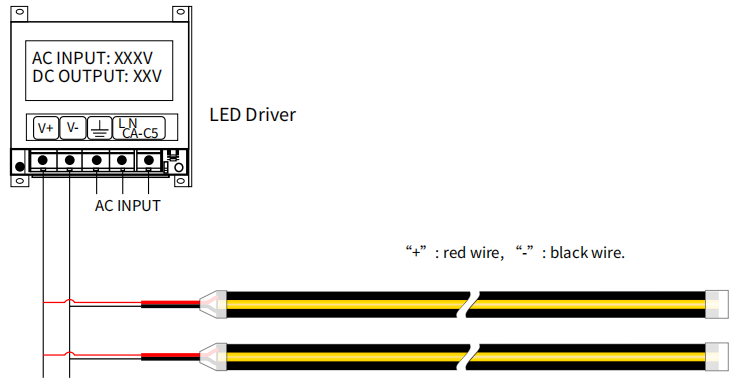

Connections:

Product information:
