Model NO.
HT-CX512-12W-12/24-05F0
Delivery:
FOB
CRI: >90
Lumen: 1200lm/M
Power: 12W/M
Input Voltage: 12V/24V DC
PCB width: 5mm
Beam Angle: 140 degree
IP rate: IP20
Quantity:
Product Features:

  • High-denstiy COB strips, 512 chips
  • 5mm super slim PCB for various design
  • Linear lighting, without light spot, soft and uniform luminance
  • Cuttable type for different length
  • High CRI, high efficiency up to 110lm/W

Parameters:

CCT

CRILuminous Flux(lm/m)Luminous Efficacy(lm/w)PowerWidthVoltageMini cut
2700K>90960lm/m80lm/w12W/M5mm12V/24V DC31.5mm
3000K1020lm/m85lm/w
4000K1140lm/m95lm/w
6500K1200lm/m100lm/w

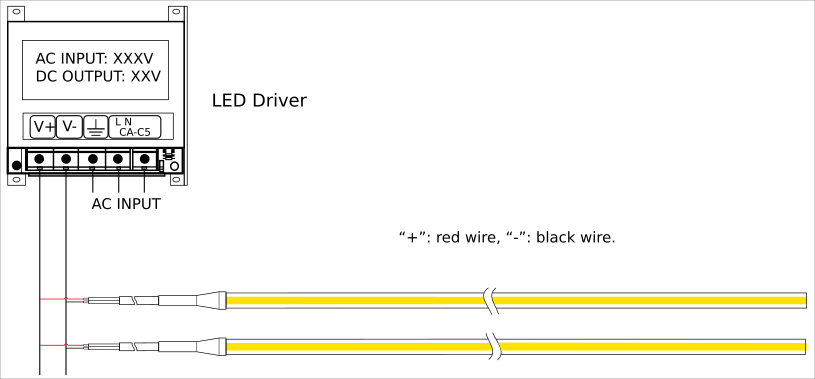

Connections:

Product information:
