Fujian Hiteon Technology Co.,Ltd.About UsNO. 16, Guangdian North Road, Yunling Development Zone, Yunxiao County, Fujian, ChinaFujian Hiteon Technology Co.,Ltd. is a high-tech enterprise focusing on the R&D, manufacturing and sales of LED strip lighting products. The company has the most advanced intelligent manufacturing production lines and complete quality assurance system. The company has passed ISO9001, ISO14000, BSCI and other system certification products through the CE, CB, Rohs, TUV, ERP, CULcertification. Our led strip light series include: RGB series, white, red and other monochrome series, mini lighting series, etc. The product line is complete, especially the Mini LED strip light series is the main advantage of the company,

704LED Tunable white COB strip
704LED Tunable white COB strip
704LED Tunable white COB strip
704LED Tunable white COB strip
704LED Tunable white COB strip
704LED Tunable white COB strip
704LED Tunable white COB strip
704LED Tunable white COB strip
704LED Tunable white COB strip
704LED Tunable white COB strip
704LED Tunable white COB strip

704LED Tunable white COB strip

Model NO.
HT-CDW704-24W-24V-12F0
CRI: >90
Lumen: 2220lm/M
Power: 12/24W/M
Input Voltage: 24V DC
PCB width: 12mm
Beam Angle: 140 degree
IP rate: IP20
Quantity:
Product Features:

  • High density COB LEDs
  • Linear lighting, without light spot, soft and uniform luminance
  • High CRI, high brightness and high efficiency
  • Provide single white color (WW or CW) or mixed to neutral white
  • High temperature resistance, long lifespan





Parameters:

CCT

CRILuminous Flux(lm/m)Luminous Efficacy(lm/w)PowerWidthVoltageMini cut
3000K>901080lm/m90lm/w12W/M12mm24V DC22.73mm
4000K2200lm/m92lm/w24W/M
6500K1140lm/m95lm/w12W/M

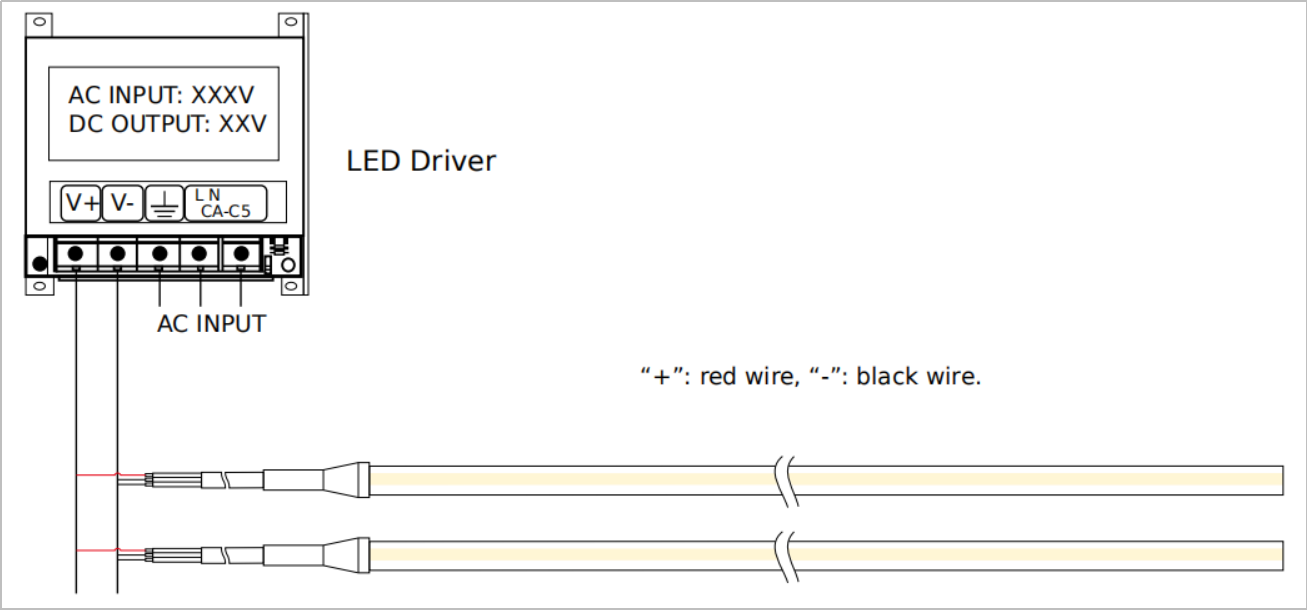

Connections:

Product information:
