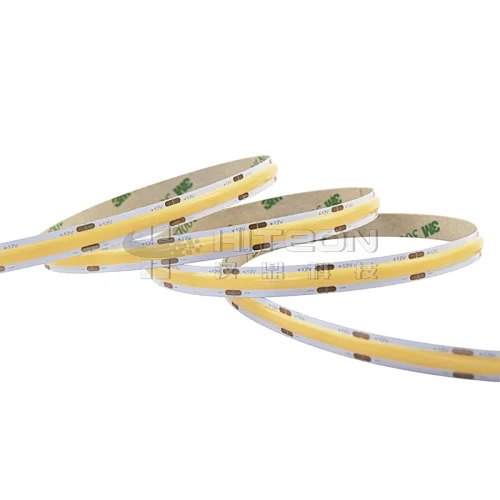

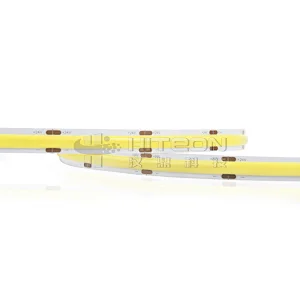

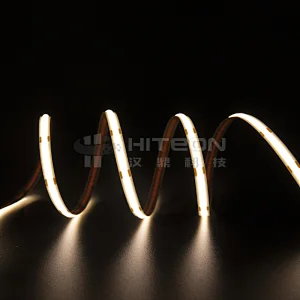

Main push 512pcs COB Mini strip

Model NO.: HT-CX512-12W-12/24-08F0
Delivery: FOB

CRI: >90
Lumen: 1200lm/M
Power: 12W/M
Input Voltage: 12V/24V DC
PCB width: 8mm
Beam Angle: 140 degree
IP rate: IP20/IP68

Quantity:

Product Description

Product Features：

High-denstiy COB strips, 512 chips
Linear lighting, without light spot, soft and uniform luminance
Cuttable type for different length
High CRI, high efficiency up to 100lm/W

Parameters:

CCT	CRI	Luminous Flux(lm/m)	Luminous Efficacy(lm/w)	Power	Width	Voltage	Mini cut
2700K	>90	960lm/m	80lm/w	12W/M	8mm	12V/24V DC	31.5mm
3000K		1020lm/m	85lm/w
4000K		1140lm/m	95lm/w
6500K		1200lm/m	100lm/w
